Introduction

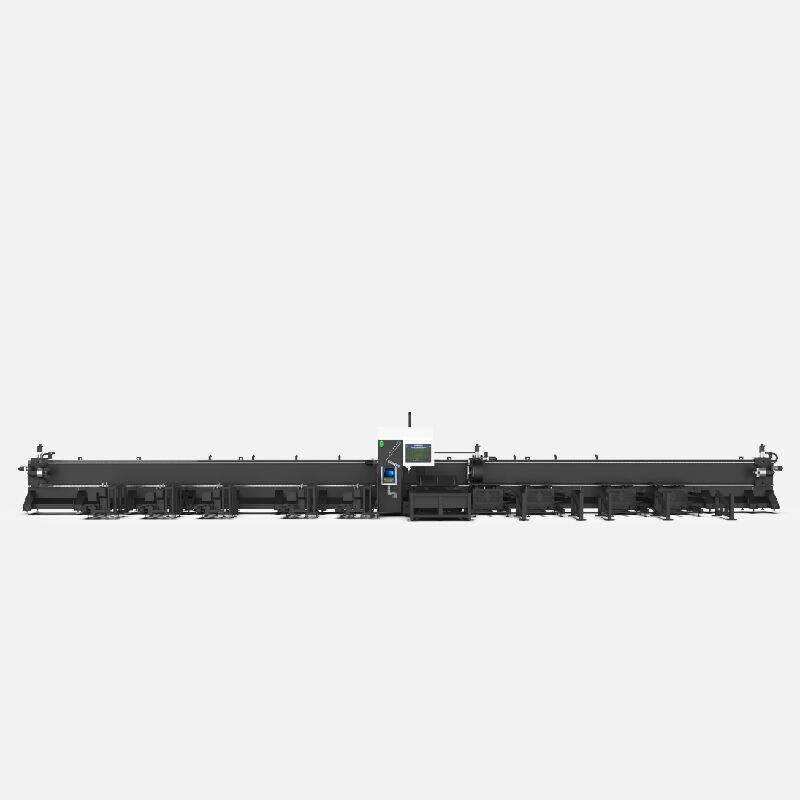

12056HT tube laser cutter is designed for ultra heavy tubes and profiles with laser power ranging from 6kW to 12kW. With its side-attached machine bed, it can achieve better stability, larger loading capacity and greatly improve shock resistance to ensure higher cutting accuracy. Four-chuck can be used for cutting in reversed ways to realize the whole pipe processing of long tubes and achieve zero tailings for larger material utilization and cost-saving.
Technical Parameters of TUBE LASER CUTTING MACHINE sf12038HT
| Model | SF12056HT |
| Pipe processing range | 40’* φ1.96″~22.04″(Square tube: 1.96″*1.96″~15.55″*15.55″) |
| Laser Power(kw) | 6/8/12 |
| Maximum Speed | 131’/min |
| Positioning Accuracy | ±0.05mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Maximum Rotational Speed | 40rpm |
| Maximum acceleration | 0.4G |
| Table Maximum Load | 2200 lbs |
Advantages OF TUBE LASER CUTTER sf12056HT
Length: 10′-40′
Diameter of Round Tube：φ1.96″ -φ22.04″
Diameter of Square Tube：1.96″*1.96″~15.55″*15.55″
Loading Capacity: max： 2200 lbs
Raycus laser source and self developed laser cutting head, a great combination for stable performance with top cutting speed. Advanced CNC bus system applied to 4-chuck delivering structure, work with Tubest 3D nesting software, it will achieve most efficiency and minimum waste.
Main Configuration OF TUBE LASER CUTTING MACHINE sf12056HT
Four-Chuck Clamping
Four pneumatic chucks empowers the tube cutter with big clamping force, to clamp heavy tubes stably and easily. Four chucks can achieve cutting in reversed ways to realize the whole pipe processing of long tubes and achieve zero tailings for larger material utilization and cost-saving. The chuck adopts a pneumatic self-centering structure, with greater clamping force and fast clamping speed. With the strong clamping force, there would be no loosening or slipping of the heavy pipe, which can achieve more stable feeding and more precise cutting.
Tubepro Tube Cutting Software + Tubest Nesting Software
FSCUT5000A is a bus control system that is specially developed for tube processing, especially suitable for four-chuck tube cutter. It supports the cutting of round tube, square tube, rectangular tube, L shaped steel, U shaped steel and H shaped steel with high-precision and high-efficiency.
TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.

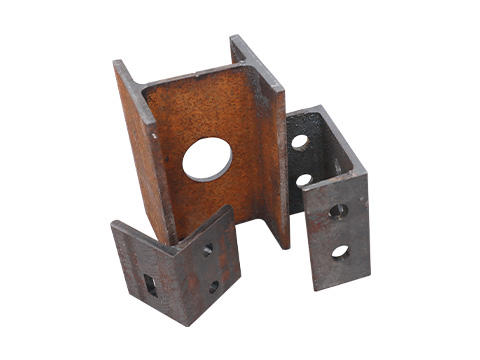

CUTTING SAMPLES
Cutting material: Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel, electrolytic steel, titanium alloy, manganese alloy, etc
Application industries
Ultra heavy tube cutting machine is widely used in aerospace, metal fabrication, machine manufacturing, rail transport, automobile manufacturing and food machinery.
Five Star Fast Service System
High Efficiency
- 24 hours a day (mainly for international), 7 days a week, 365 days a year at any time to receive repair calls;
- Within 10 minutes, technical engineers will consult, fix maintenance plan in one hour, and send engineers in one working day.
Field Service
- Our branches in United States,Germany, India,Pakistan,Serbia provide localized services and technical support for global customers.
After-Sale Service
- The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
- The seller will provide technical guide’s e-mail, telephone, WeChat, WhatsApp and so on.
- The seller should pay for the travel expense if local service needed within warranty time.
Warranty
- The warranty of laser source is 2 years.
- The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
- Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
Worry-free
- Pre-sale service: theoretical + practical operation training, self-diagnosis training for common faults, guidance for quick repair of difficult faults, and warning of matters needing attention in use;
- Regular service: regular maintenance reminder, regular door-to-door service, regular promotional activities;
- Value-added services: equipment software and hardware upgrading services, financial leasing services, delayed warranty service.
