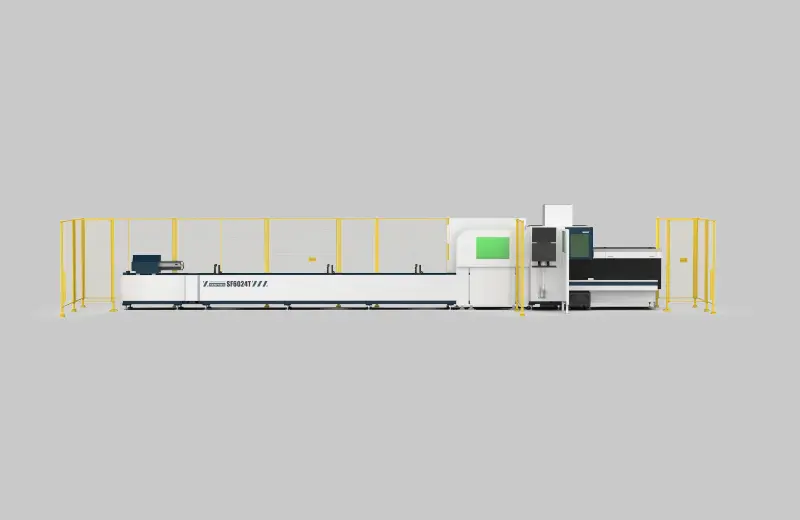

Two-chuck Tube Laser Cutting Machine T Series

The control system, chucks, cutting head, machine body and self-developed laser generator are well adapted with each other, so as to cut small tube without overburning or adhering slag and large tube fleetly.

• No-load speed: 60-100m/min
• Acceleration: 0.6-1.2G

Based on EtherCAT protocol, it is easy for the system to get started only by clicking a button. Its built-in nesting software can nest both single or multiple parts, and import files of different formats in batch.

* Content-rich cutting database    * Co-edge cutting
* Automatic centering                     * Corner cutting

The machine comes standard with automatic unloading device to unload 3m long tube. Users may apply for semi-/fully-automatic loading devices as optional accessories, so as to reduce labor intensity during work.

The chucks are self-centering and high in clamping precision. Pneumatic grippers are adopted to clamp tubes of different shapes, sizes and weights firmly.

• Rotating speed: 140r/min

• Clamping force: 150-500kg

We offer two kinds of tube support modes. For follow-up support, it usually moves along with rotating tube. In case of vari-pitch support, long tube will be free from cutting deviation caused by its swing up and down.
